Diagnostic imaging is the single most technically demanding space in any healthcare facility. MRI suites require radiofrequency shielding with zero-gap tolerance. CT rooms need 1.6mm lead-equivalent protection and structural reinforcement for 2,000kg gantries. X-ray rooms demand precise beam alignment that a 3mm construction error can compromise. Traditional construction struggles to deliver this level of precision on-site. But factory-built modular construction was engineered for exactly this challenge. For healthcare systems building or expanding imaging capacity, modular delivery cuts timelines by 40–50% while achieving tolerances that field construction simply cannot match.
Why Imaging Centers Are the Ultimate Test of Construction Precision
An MRI suite isn't just a room with a machine in it. It's a precision-engineered envelope where six distinct systems must integrate perfectly: radiofrequency shielding (copper or steel, welded at every seam), magnetic shielding (6–10 tons of steel plate), vibration isolation (ground-borne vibration <2,000 µin/sec), cryogen venting (quench pipe routing through structure), HVAC (tight temperature control ±1°C), and structural support (5–7 ton magnet dead load). Get any one of these wrong and the room fails commissioning, a $50,000–$150,000 rework on a $3 million MRI installation.
In traditional construction, these systems are installed sequentially by different subcontractors over 12–18 weeks on a live construction site where dust, weather, and scheduling conflicts are constant. In modular construction, all six systems are integrated in a climate-controlled factory where every weld is inspected under shop lighting and every shield continuity test is completed before the module leaves the production line.
MRI Suites, Solving the Six-System Integration Problem
Magnetic resonance imaging demands the most complex construction of any medical space. The magnet's 1.5T or 3.0T field means that every piece of steel within the 5-gauss line must be non-ferrous or precisely accounted for. A single overlooked steel stud can create image artifacts that degrade diagnostic quality. Factory construction eliminates this risk: the module is built with documented non-ferrous materials, verified with a magnet check before leaving the factory.

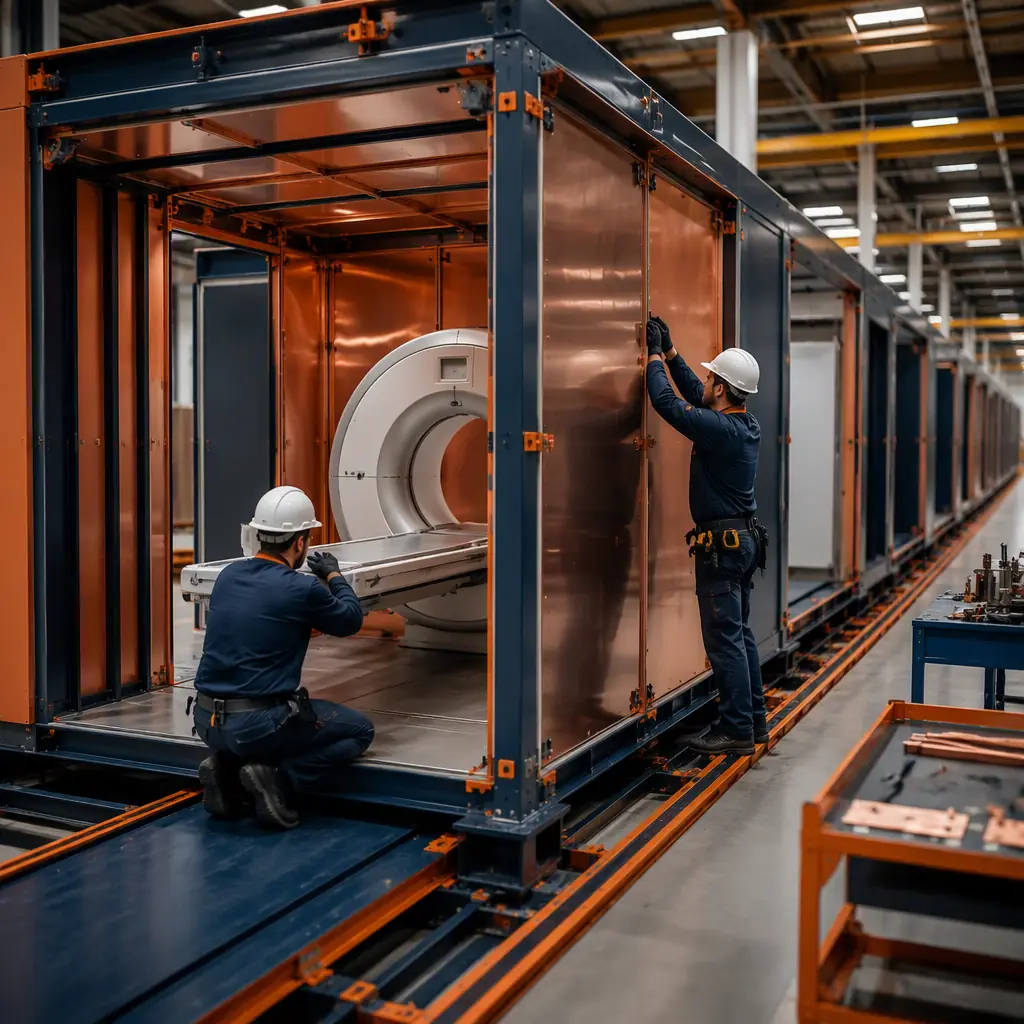

RF shielding integrity. For a deeper look, our modular urgent care centers, build wal… guide covers the details. The copper or steel RF cage must be electrically continuous, one unsealed seam creates a leak that interferes with image acquisition. Factory welders achieve continuity test results of <0.1 ohm resistance across all seams on the first attempt, versus 30–40% first-pass failure rates for field-welded cages. Each module's RF cage is tested and certified before it enters the shipping envelope.
Vibration isolation. MRI magnets are extraordinarily sensitive to ground-borne vibration. A forklift driving past the building can ruin a scan. Modular MRI suites are built on isolated structural frames with elastomeric bearings, decoupled from the rest of the building structure. The isolation system is tuned and tested in the factory, not improvised in the field. For projects in seismic zones, see our guide to modular seismic design and earthquake-resistant construction for how these systems perform under lateral loads.

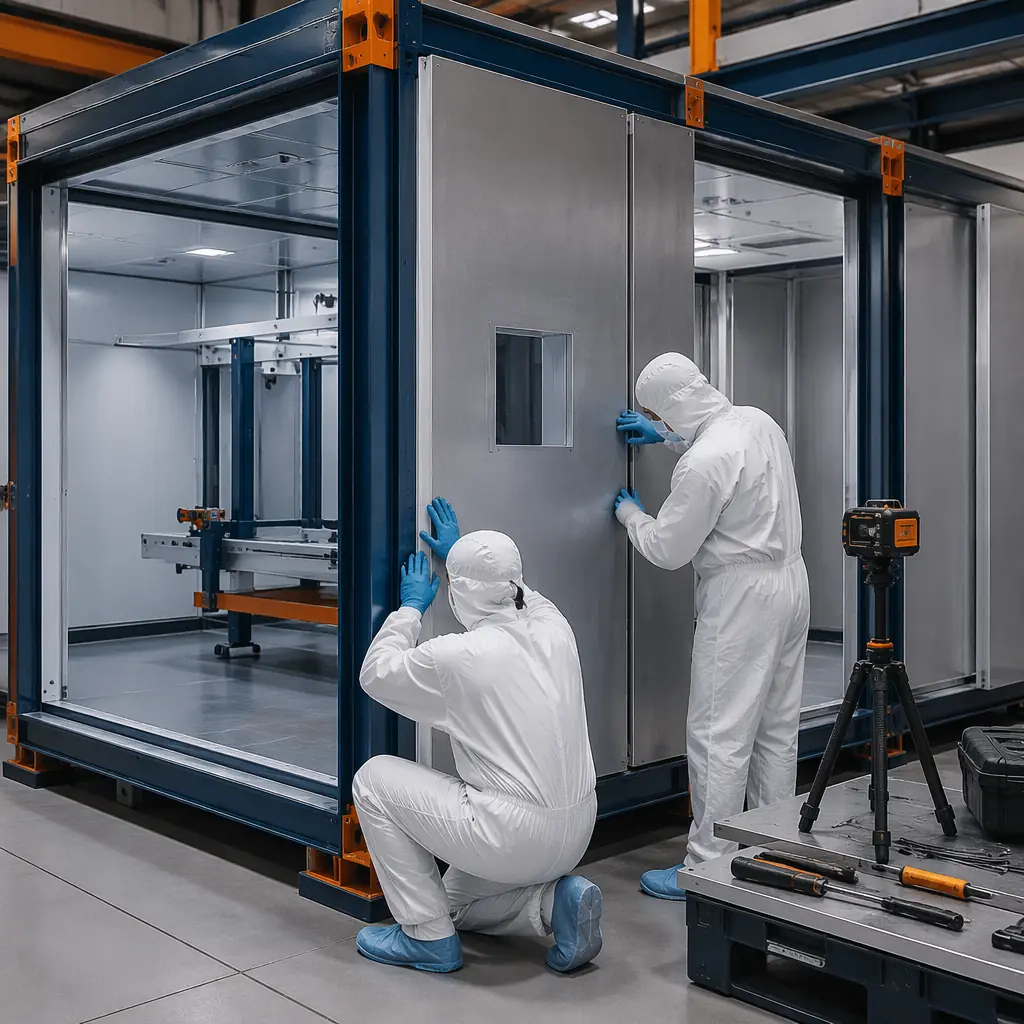

CT and X-Ray Rooms, Radiation Shielding with Zero Margin
CT and X-ray shielding is unforgiving: a 3mm gap in lead lining compromises the entire room. In traditional construction, lead sheets are hung on-site by drywall contractors, joints are overlapped, and inspectors pass or fail based on measurements taken after drywall is installed, when remediation means demolition. Modular factories install, overlap, and verify lead shielding on an open module frame where every joint is visible and testable. Typical factory tolerance: ±1.5mm on lead sheet placement. Field tolerance: ±15mm.
For broader healthcare facility planning, our guide to modular healthcare construction covers how these precision advantages extend across the full spectrum of medical buildings.
Cost and Timeline Comparison: Modular vs. Traditional Imaging Centers
The economics of modular imaging construction are compelling, particularly when accounting for the revenue impact of faster opening:
| Metric | Traditional | Modular | Advantage |
|---|---|---|---|
| MRI suite construction time | 16–20 weeks | 8–10 weeks on-site | 50% faster |
| Shielding first-pass success | 60–70% | 98%+ | Near-zero rework |
| Total project cost (3-room center) | $3.2–$4.5M | $2.6–$3.5M | 15–22% savings |
| Revenue acceleration (MRI @ $2,500/day) | Baseline | +$150,000–$225,000 | 8–12 weeks earlier revenue |
| Infection control during build | $200–$400/sqft ICRA | Minimal (factory-built) | Patient safety + cost |
PET/CT and Nuclear Medicine, The Next Frontier
PET/CT and SPECT-CT suites introduce an additional layer of complexity: radioactive isotope handling requires hot labs with negative pressure, shielded waste storage, and dedicated HVAC that doesn't recirculate to other occupied spaces. Modular construction solves this with pre-integrated mechanical systems. The hot lab's exhaust, supply, and pressure differential are commissioned in the factory before the module reaches the clinical site. Nuclear regulatory inspections also benefit: factory documentation of shielding installation and system commissioning provides a paper trail that regulators accept more readily than field-built documentation.
For facilities requiring cleanroom-grade environments adjacent to imaging, such as radiopharmaceutical preparation areas, our guide to modular lab and research facility construction covers cleanroom-class modular delivery.
Site Integration, Connecting Imaging Modules to Existing Hospitals

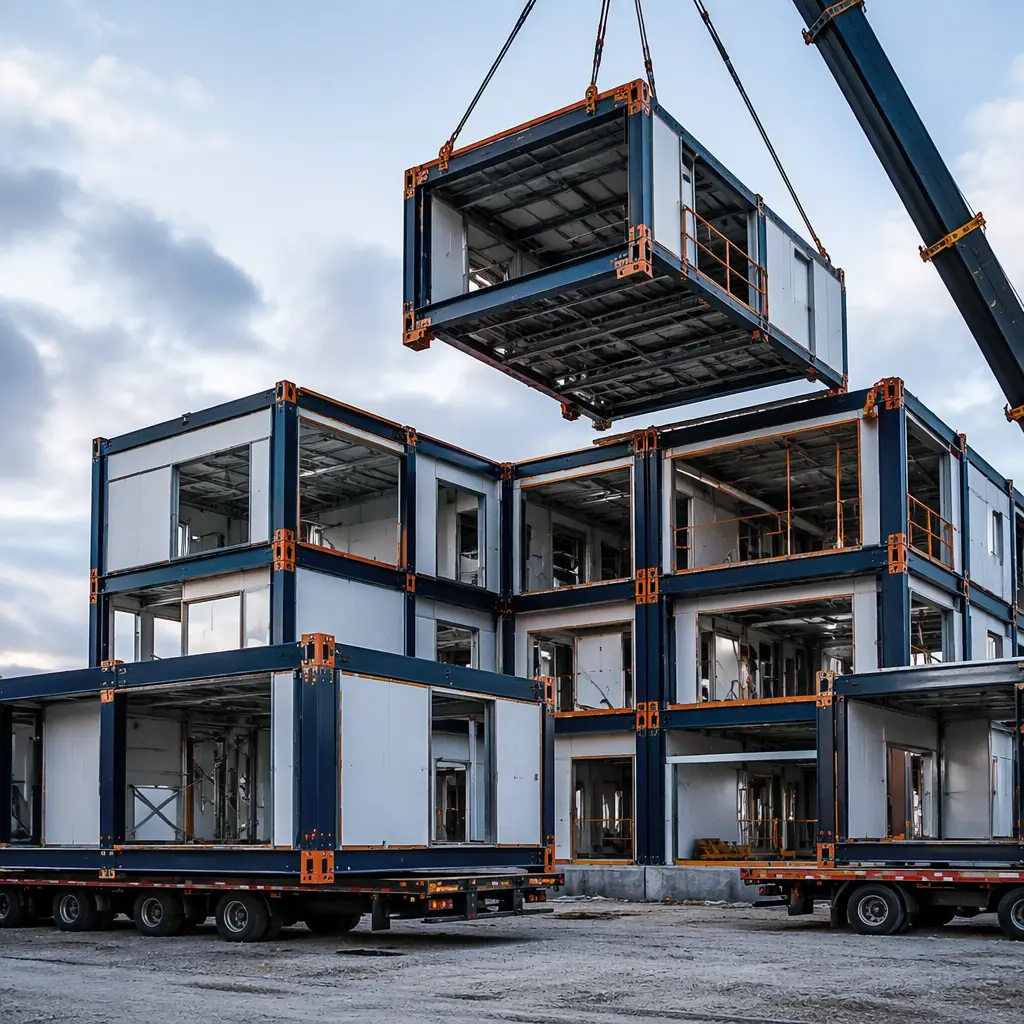

Most imaging center projects are additions to existing hospital campuses, not greenfield builds. The modular approach excels here: modules arrive with shielding, MEP, and finishes complete, requiring only corridor connections and utility tie-ins at the site. A three-room imaging center (MRI + CT + X-ray) can be craned into place over a single weekend, minimizing disruption to active hospital operations. For detailed logistics planning, consult our guide to modular construction crane and equipment logistics.
Traditional imaging center construction means 16 weeks of contractors, dust, and vibration directly adjacent to patient care areas. Modular delivery compresses on-site work to 2–3 weeks of connection and commissioning, the rest happens in our factory, 500 miles from your patients.
Is Modular Right for Your Imaging Project?
Modular delivery is particularly well-suited to imaging centers that meet these criteria:
- Multiple identical room types. A center with 2–3 MRI bays or CT rooms maximizes the factory production efficiency that drives cost savings.
- Constrained or active hospital site. Building on a campus where construction disruption carries patient safety risk makes offsite production the obvious choice.
- Aggressive timeline. Revenue from imaging services typically covers the construction premium within 6–12 months, so every week saved is revenue captured.
- Regulatory complexity. Jurisdictions with stringent radiation safety inspections benefit from factory-documented shielding installation.
- Future flexibility. Modular imaging suites can be designed for disassembly and relocation, see our guide to modular design for disassembly and relocation for how this works in practice.
Diagnostic imaging construction demands precision that traditional job sites cannot reliably deliver. Modular construction brings factory tolerances, integrated system testing, and timeline compression to the most technically challenging rooms in healthcare. As imaging technology advances, higher-field MRI, photon-counting CT, hybrid PET/MR, the construction precision requirements only increase, making modular delivery not just an option but the logical default for new imaging capacity. For a comprehensive look at how modular methods reduce total project cost across building types, see our 2026 modular construction cost per square foot guide.
Planning a diagnostic imaging center? Contact our team for a feasibility assessment on your imaging project. Our engineering team can review your MRI/CT equipment specifications and provide a modular delivery timeline and budget within 10 business days.
Related reading on the surrounding scope: modular radiation therapy and oncology centres covers the vault-adjacent shielding problem, modular healthcare facility construction sets out the wider clinical-delivery context, modular clean room construction explains controlled-environment certification, and building commissioning and handover details the hold-point discipline this page describes. For the procurement side, see scope boundaries in delivery-route comparison and our warranty and interface-ownership guide.
The Six-System Interface Map: Where Imaging Projects Actually Fail
An imaging suite is the most interface-dense room a modular factory can be asked to deliver. Six systems converge on a single shielded volume, and each one has a different governing authority. When an imaging centre runs into trouble, it is almost never because one system was built badly — it is because two systems were each built correctly to their own assumption about a shared boundary. The table below maps the six interfaces, what actually decides the boundary, and where the ownership gap usually opens.
| Interface | What Decides the Boundary | Where the Gap Opens |
|---|---|---|
| RF shielding continuity across module joints | The manufacturer's required attenuation figure for the specific scanner model, not a generic "shielded room" specification | The single most common failure point — factory shielding is certified to the module face, and the field joint must restore continuity to the same figure |
| Quench ducting and pressure relief | Whether the magnet is a zero-boil-off or helium-bath design, which determines quench volume and duct routing | Fabricator provides the penetration; the magnet vendor owns the quench pipe termination to atmosphere |
| Floor vibration and structural isolation | The scanner's own tolerance specification (often stated as a vibration velocity limit), which is stricter than building code | Site foundation and the module floor system are two different scopes — the isolation detail must cross the boundary between them |
| Chilled water and cooling capacity | Scanner heat rejection in kW at the specified duty cycle, which is not the same as the room's design cooling load | Building HVAC is sized to the room; the scanner's rejection figure arrives with the equipment order, often after design freeze |
| Medical gas and emergency power | Whether the suite includes contrast-injection or sedation capability, which changes the gas and power classification | Frequently unassigned when the clinical brief is written for imaging only and sedation is added later |
| Shielding integrity testing and acceptance | The physicist's test protocol, which is a clinical requirement rather than a construction one | Genuinely unowned by default — the shielding contractor tests their own work; the imaging physicist validates it for clinical use. Nobody contracts both unless it is written in. |
Two of these deserve explicit attention in any modular imaging contract. RF shielding continuity at the field joint is where a factory-certified attenuation figure is most often quietly lost, because the certification applies to the module as shipped and the field joint is a separate scope. And shielding acceptance is split between two authorities who do not conventionally contract with each other — write the physicist's validation into the scope, or nobody owns it.
Commissioning Hold Points: What Must Be Proven Before the Scanner Arrives
Imaging equipment is the most expensive thing on the site and the least tolerant of a building that is not ready. The programme below lists the hold points that must be signed off in sequence, because a scanner delivery into an unverified room creates a schedule problem that cannot be recovered by working faster afterwards.
| Hold Point | What It Proves | Evidence Issued |
|---|---|---|
| Equipment data freeze | Scanning room dimensions, structural loads, and cooling requirement are locked to the actual ordered unit | Signed equipment data sheet from the vendor, referenced in the construction documents |
| Module shell verification (factory) | RF shielding, floor level tolerance, and penetration positions match the frozen drawing | Factory inspection record with shielding continuity measurements to the module face |
| Field joint shielding continuity | Attenuation across the module-to-module seam meets the scanner manufacturer's figure | On-site attenuation test at each joint, recorded before finishes are closed |
| Vibration and floor flatness | The installed floor meets the scanner's vibration velocity limit, not merely the building code | Vibration measurement report at the scanner footprint |
| Cooling and power readiness | Chilled water, heat rejection, and emergency power can carry the scanner at duty cycle | Commissioning record with measured flow, temperature, and transfer-switch timing |
| Clinical shielding validation | The room is safe and compliant for clinical imaging use, as distinct from constructionally complete | Imaging physicist's acceptance report — the document that actually gates first patient |
The distinction that matters on this page is between the fifth and sixth hold points. A room can be constructionally complete, powered, cooled, and shielded to the drawing, and still not be usable, because clinical validation is a separate sign-off by a different professional. Programme schedules that treat "building complete" as the milestone before equipment delivery routinely discover this a month too late.
What We Decline to Take On
Modular delivery removes site risk from an imaging project, but it does not remove specialist responsibility. These are the four areas that sit outside our scope, and being explicit about them avoids the delays that come from an assumed mandate.
- Clinical validation and physicist sign-off. We deliver a room built and shielded to the specified attenuation. We do not perform the clinical acceptance test, and we do not sign the document that gates first patient.
- Scanner selection, siting, and equipment commissioning. The scanner is chosen and commissioned by the imaging provider and the equipment vendor. We build to the frozen equipment data sheet; we do not specify the unit.
- Retrofit of shielding into a completed module. RF attenuation is a property of the assembly as built. If the shielding requirement changes after fabrication, the correct fix is a re-built module, not a field modification. This is a scope we decline rather than estimate.
- Guaranteeing throughput or patient volumes. We can compress the construction programme and deliver a room that supports the specified equipment. Whether the centre reaches its projected scan volume depends on referral patterns and staffing, neither of which are construction variables.
Questions We Are Asked Before Every Imaging Centre Contract
| Question | Answer |
|---|---|
| Can you hold a fixed price before the scanner is ordered? | Not credibly. Shielding specification, floor loading, quench routing, and cooling capacity all derive from the specific scanner model. A fixed price before equipment selection is a price with a rework allowance built in. The price gate should follow the equipment data freeze. |
| How do you handle RF shielding across the module joint? | The module is shielded and measured in the factory to the scanner manufacturer's specified attenuation. The field joint restores continuity on site and is tested before finishes close. We record the measurement at every joint, because that is where the certified figure is most often lost. |
| Can the shielding be upgraded later if we change scanners? | No, and this should be decided at design freeze. Shielding is a property of the built assembly. If a future scanner needs a higher attenuation figure, the honest answer is a replacement module rather than a field upgrade — so specify the highest figure you may plausibly need at the outset. |
| Who validates the room for clinical use? | A qualified imaging physicist, contracted by the imaging provider, not by us. We supply the construction and shielding documentation they need. We recommend writing that validation explicitly into the project scope so it does not fall between the shielding contractor and the clinical team. |
| What is a realistic programme to first patient? | On a single-suite project with the equipment frozen at contract, typically 9–14 months from notice to proceed to clinical validation, against 18–26 months for a site-built suite. Module fabrication occupies 12–16 weeks of that; the balance is equipment lead time, approvals, and clinical commissioning. |
| Can an imaging suite be added to an operating hospital without disruption? | Yes, and it is one of the strongest cases for modular delivery, because the disruptive work happens off site. The on-site phase is essentially foundations, a crane lift, and interface connection. The interfaces that need care are the chilled water tie-in and the power transfer, both of which can be scheduled into planned shutdown windows. |
Before you freeze the equipment order: the price gate on a modular imaging suite follows the equipment data freeze, not the contract date. If you have narrowed your scanner options to two or three models, our engineering team can prepare a comparison of the shielding, structural, and cooling implications of each against a modular delivery programme — which is the point at which the equipment decision and the construction decision should be made together.
