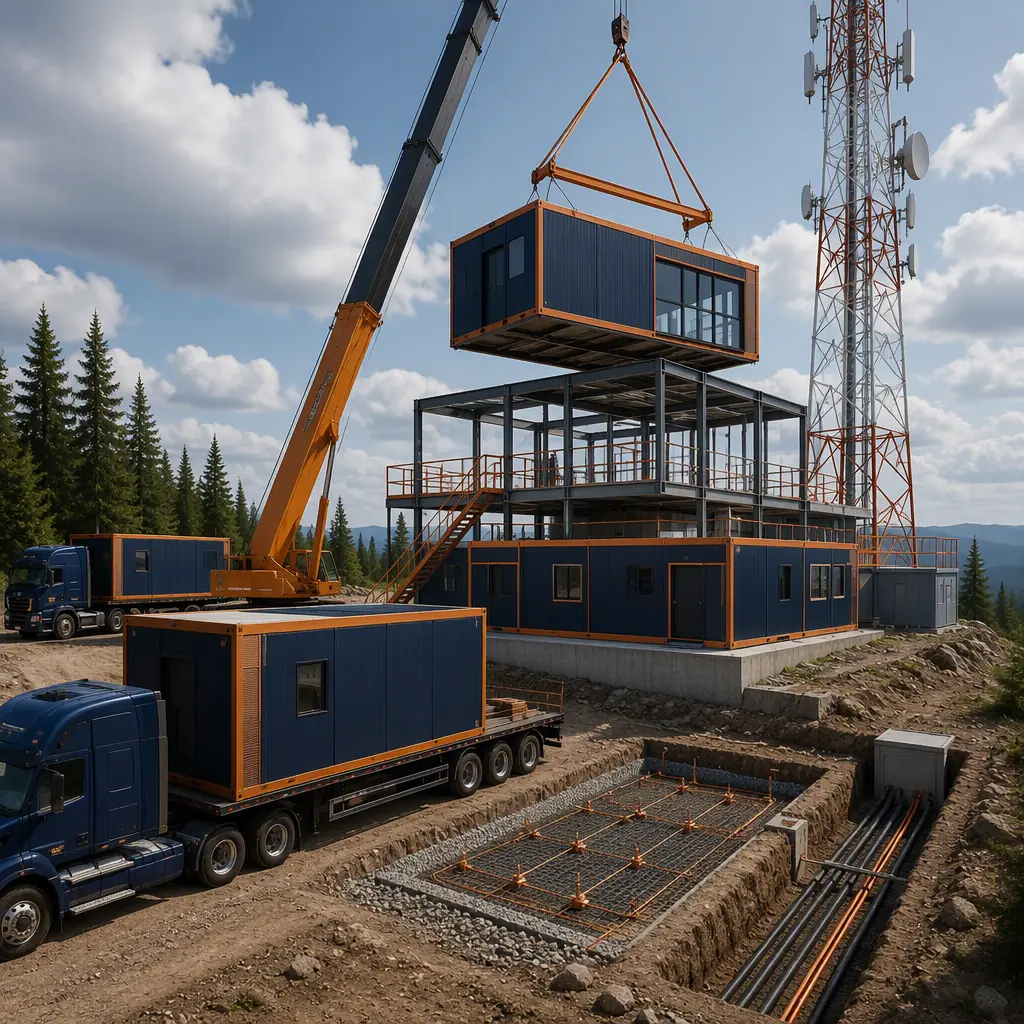

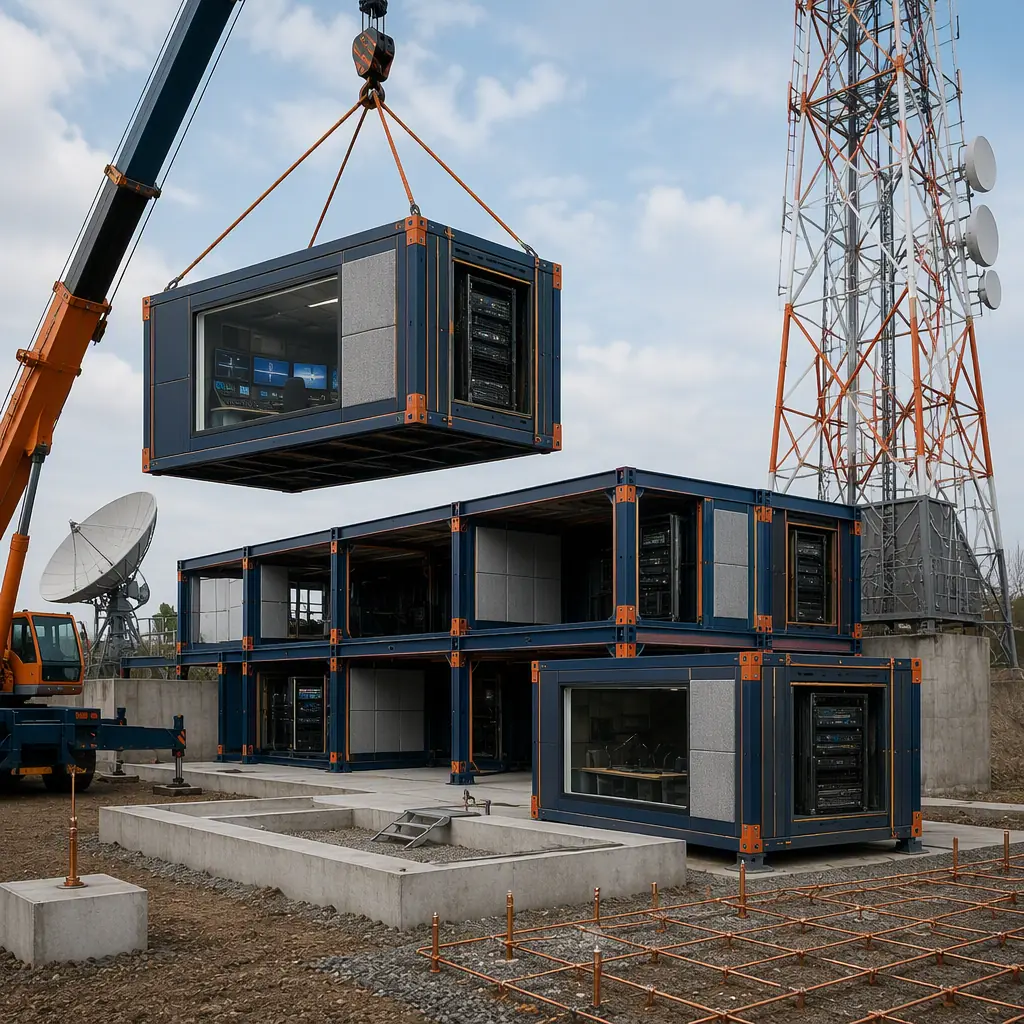

A broadcast station is a building with two very different halves. The studio side needs acoustically isolated rooms where a live mic never picks up the HVAC or the traffic outside, a master control room where the signal is monitored and routed, and a newsroom that runs around the clock. The transmission side needs a shelter at the tower site with the transmitter, the RF plumbing and the backup power that keeps the station on air through an outage. Site-built stations typically run 12–18 months because the acoustic construction, the RF grounding, the generator system and the studio fit-out are built by different specialties in sequence. Modular prefabricated construction changes that: the on-air studio, the production studio, the master control room and the transmitter shelter are manufactured as steel-frame modules in the factory while the site work — the foundation, the tower, the utilities and the grounding grid — proceeds in parallel, then the modules are delivered and connected in an installation window of days. A 3,000 sq ft radio station with two on-air studios and a master control room can be designed, manufactured and installed in 22–32 weeks — roughly 40% faster than site-built delivery — following the same factory-built model we document for modular telecom and 5G shelters and modular edge data centers. This guide covers the broadcast program, acoustic engineering, RF and grounding, master control design, remote transmitter sites, cost structure and the phasing that gets a station on air.
What a Broadcast Facility Program Actually Builds

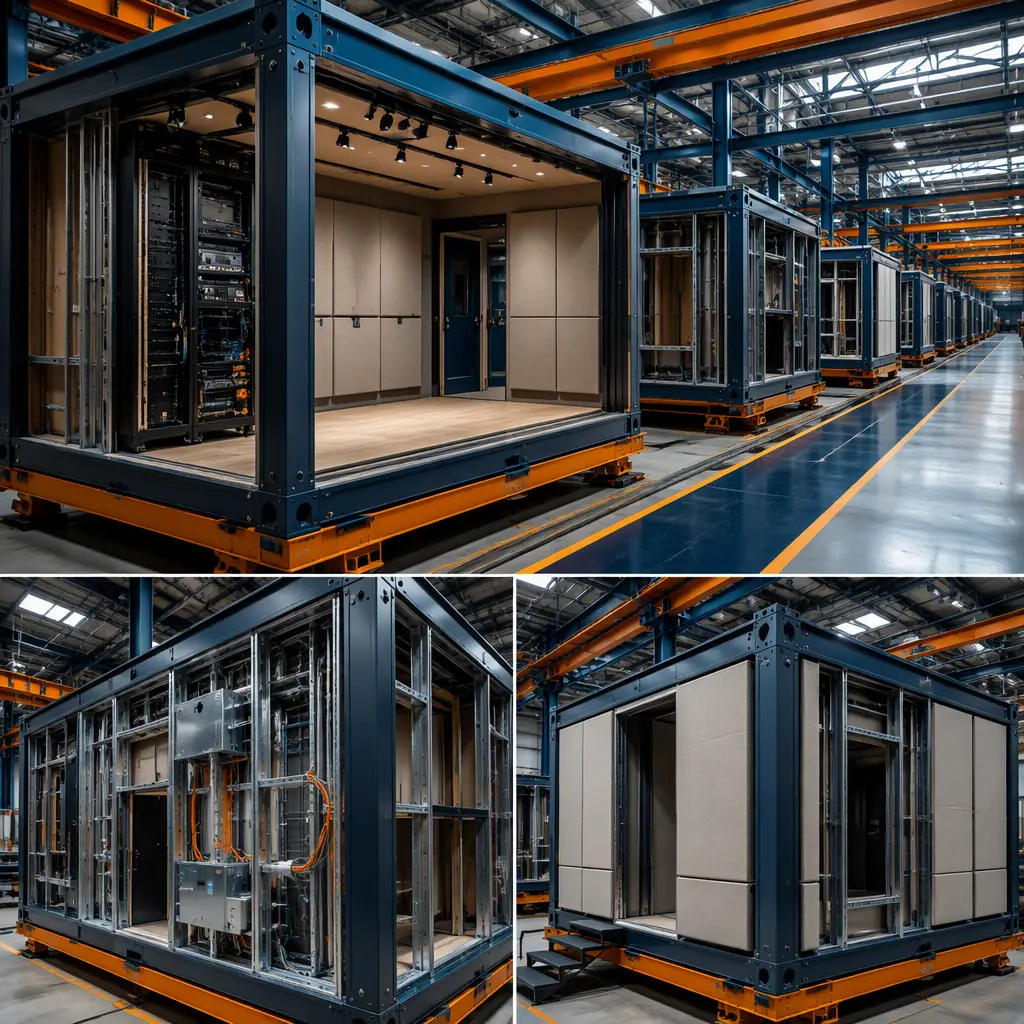

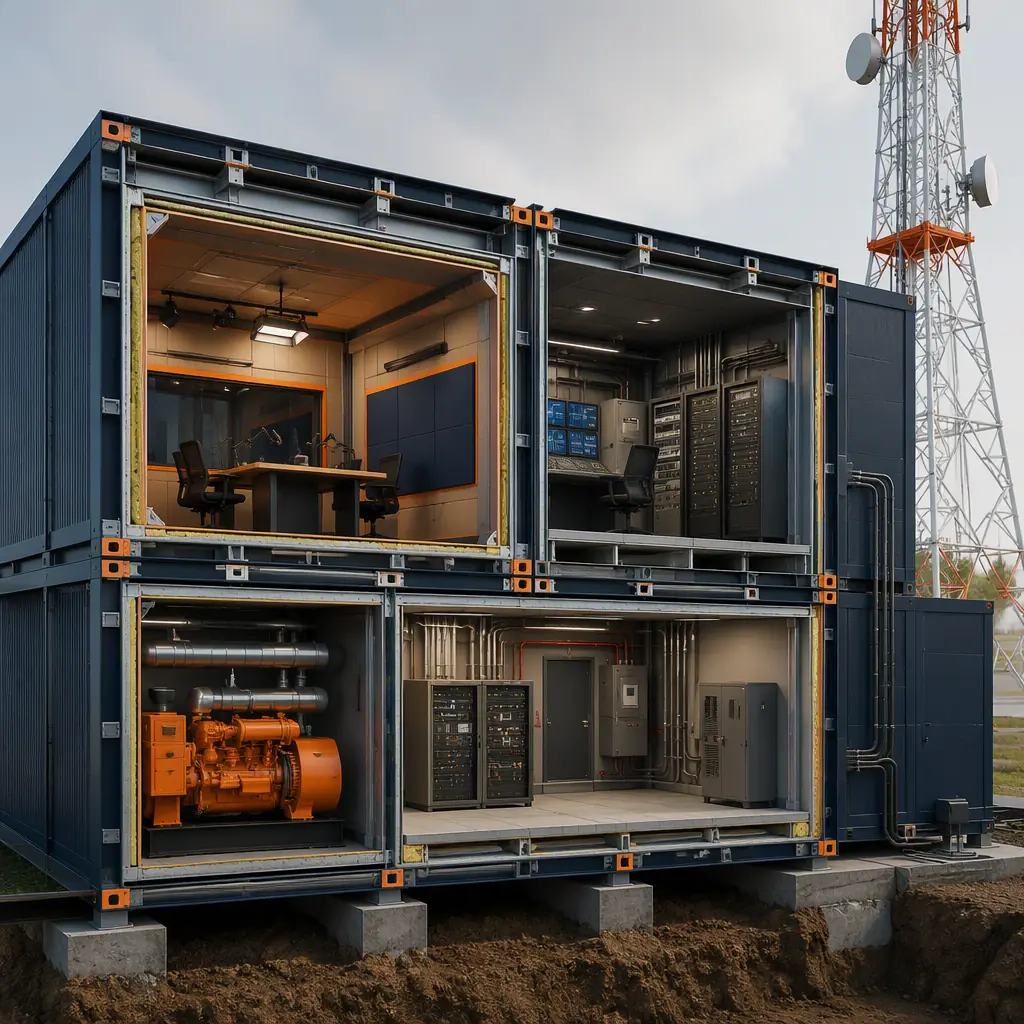

A broadcast facility combines a production program and a transmission program. The production program includes the on-air studio — typically 200–400 sq ft for a radio station — the production or interview studio, the master control room with the air-chain equipment, the newsroom with its workstations, and the offices, break room and reception. The transmission program includes the transmitter room with the FM or AM transmitter and its RF output plumbing, the equipment room with the STL (studio-transmitter link), the generator and the electrical gear, and, for AM stations, the tuning and matching equipment at the base of the antenna. What makes the program modular is that every room is a factory-built steel-frame module with its acoustic treatment, MEP systems, grounding and equipment racks pre-installed, following the room-level engineering discipline we document for modular emergency operations centers and 911 dispatch facilities — buildings with the same never-down, mission-critical relationship between people and electronics.
Acoustic Engineering: NC-Rated Studios in a Module
The studio is an acoustic instrument, and the module frame is the ideal place to build one. The on-air studio is engineered to a background-noise target of NC-20 to NC-25 — the same rating standard used in professional recording rooms — using the floating-floor, double-wall and mass-loaded assemblies we document for modular acoustic performance. The studio module is built as a room-within-a-room: the inner acoustic room is isolated from the module frame with resilient mounts, the wall cavities are packed with high-density insulation, and the glass between the studio and the control room is a double-glazed acoustic assembly rated STC 50+. The HVAC serving the studio is a low-velocity, acoustically lined system with the ductwork sized for silent airflow — the indoor air quality and noise-control discipline we document for modular HVAC and indoor air quality — and the module is factory-tested with a sound-level meter before it ships, so the station opens knowing its studios meet spec rather than discovering a rumble in the ductwork after the first broadcast.
RF, Grounding & the Transmitter Room
The transmission half of the building is an RF engineering problem. The transmitter room houses the FM or AM transmitter — a 5–35 kW FM transmitter occupies roughly a single equipment rack and rejects most of its input power as heat, so the room is engineered for the cooling load with dedicated high-availability HVAC — and the RF output runs through rigid coax to the tower in a path that is kept short and straight to minimize loss. The grounding system is the unsung hero: a low-impedance ground grid ties the transmitter, the building steel, the electrical service and the tower base together so lightning and static discharge have a controlled path — the grounding and bonding discipline we document for modular telecom shelters, where the same engineering keeps cellular equipment alive in exposed tower sites. The equipment room also carries the STL dish or fiber termination that connects the studio to the transmitter, the network core, and the generator with its automatic transfer switch, so the station stays on air through a grid outage — the redundant-power engineering we document for modular edge data centers.
Master Control & the Air Chain
Master control is where the station’s air chain lives: the automation system that plays the logs, the audio processors, the silence detectors, the monitoring receivers and the routing that feeds the STL. The room is designed for 24/7 operation — a raised floor for cabling, an N+1 cooling configuration, and a lighting and power layout that survives the overnight shift — following the operational design we document for modular dispatch and operations centers, where the same 24/7 reliability logic applies. The module is factory-wired with the audio, data and control cabling pre-terminated, so the air chain is commissioned in days rather than weeks. For television and multi-channel operators, the master control module scales to the video routing core, the graphics systems and the playout servers — the high-density electronics layout we document for modular data center construction, applied to the broadcast signal path.
Remote Transmitter Sites & Tower Shelters
Most stations separate the studio from the transmitter, and the transmitter site is often in a remote location — a hilltop, a farmland lease, a mountain ridgeline — where site-built construction is expensive and slow. Modular delivery shines here: the transmitter shelter arrives as a complete factory-built module with the transmitter, cooling, generator, grounding interface and the RF penetrations pre-installed, and the site work is reduced to the foundation, the tower and the utility connection — the remote-site logistics pattern we document for modular remote industrial facilities. Because the shelter is a single transportable unit, it can be craned into place, connected and commissioned in a single site visit — the rapid-deployment model we document for modular construction logistics, and the same shelter platform that serves cellular and public-safety radio sites, as we document in modular telecom shelter construction.
MEP Systems for a Broadcast Occupancy
The mechanical, electrical and plumbing systems in a broadcast facility are engineered around uptime and silence. The electrical service is typically 400–800 amps with a generator and automatic transfer switch sized to carry the full station load — the standby-power engineering we document for modular emergency operations centers — and the audio, data and control systems ride on a dedicated clean-power circuit with surge protection. The HVAC is split: the studios get the low-velocity acoustically lined system, the transmitter and equipment rooms get the high-cooling-load industrial system with N+1 redundancy, and the newsroom and offices get the comfort system. The MEP integration discipline — every system designed as part of the module frame rather than added in the field — is the process we document in modular MEP systems integration, and it is why a modular station opens tested and quiet rather than commissioned over months of punch-list work.
Multi-Station Clusters & Shared Infrastructure
Broadcast groups rarely build one station at a time — a market cluster of four or five signals shares studios, master control and engineering staff, and the modular model is built for that consolidation. A cluster facility combines the on-air studios for each brand with a shared master control room that routes all the signals, a shared newsroom with the workstations for each station’s morning show, and one engineering room serving the whole cluster — the shared-infrastructure layout we document for modular colocation data centers, where multiple tenants share power and cooling while keeping their operations isolated. The module design partitions the shared spaces with the acoustic assemblies that keep adjacent studios from bleeding into each other, and the master control core is factory-wired so adding a fifth brand to a four-brand cluster is a software change rather than a construction project. For groups rolling out a cluster across several markets, the studio and transmitter-shelter modules repeat as documented prototypes — the repeatable-facility model we document for modular procurement, where the same shelter platform deploys to a dozen tower sites with consistent engineering and a predictable schedule.
Cost Structure — Modular vs. Site-Built Broadcast Facilities
| Facility Type | Site-Built | Modular |
|---|---|---|
| 2,000 sq ft radio station, 2 studios + MCR | $1.9–3.0M / 12–15 months | $1.65–2.6M / 22–28 weeks |
| 5,000 sq ft FM/TV facility, 3 studios + newsroom | $4.2–6.5M / 15–19 months | $3.6–5.6M / 26–34 weeks |
| Remote transmitter shelter, 400 sq ft | $450–700K / 6–9 months | $350–550K / 8–12 weeks |
The 12–18% capital saving matters less than the license reality: a construction permit from the FCC carries construction deadlines, and a station that fails to build by the deadline risks losing the permit — a modular schedule that compresses the build by 5–7 months is insurance against that risk. For the full cost methodology, see our 2026 modular construction cost guide.
Phasing, Licensing & Delivery
The broadcast schedule is driven by the license and the move-in date. Modular delivery front-loads the acoustic and RF engineering into the factory while the site, tower and utilities proceed in parallel, and the installation sequence is coordinated around the critical handoff: the transmitter shelter is installed and commissioned first so the station can go on air from the tower site even while the studio modules are being connected — the phased-commissioning pattern we document for modular building additions and expansions. The critical-path discipline — factory slots, module sequencing and site readiness — is the scheduling methodology we document in modular construction scheduling, and the factory quality control, with each studio module sound-tested and each transmitter room RF-tested before it ships, is the process we document for modular factory QA/QC.
Is Modular Right for Your Broadcast Project?
Modular delivery creates the strongest value for broadcasters building under an FCC construction deadline, operators relocating a station without losing airtime, and groups standardizing a studio or transmitter-shelter prototype across a cluster of markets. The same factory-built model serves 2,000 sq ft neighborhood radio stations, 5,000 sq ft regional FM/TV facilities and remote transmitter shelters on mountaintops — and because the studios, master control and transmitter rooms arrive factory-built and tested, the on-air date is a date on the calendar, not the end of a construction project.
