A dietary supplement plant is a controlled-powder process wrapped in an environment. The raw materials arrive as bulk active ingredients, excipients and herbal extracts, then pass through receiving and dispensing, blending or granulation, encapsulation, tableting, coating, and finally bottling, blistering and cartoning — while a parallel path routes bulk material to a quality-control laboratory for identity, potency, micro and heavy-metal testing before a single batch ships. Every one of those steps is sensitive to either humidity (hygroscopic actives and softgels), to airborne contamination (powders and capsules), or to temperature (probiotics and fish oil), so the supplement building is engineered to a dual standard: the processing suites to a positive-pressure cleanroom classification and the whole plant to a Good Manufacturing Practice environment that is auditable against the FDA's dietary supplement current GMP rule. Site-built supplement plants routinely run 12–20 months because the cleanroom walls, the HVAC and HEPA handling, the stainless process piping, the utilities and the electrical are built by different specialists in sequence inside a tall, mechanically-dense shell. Modular prefabricated construction changes that: the receiving, dispensing and powder-blending suites, the encapsulation and tableting rooms, the coating and bottling lines, the QC laboratory and the warehouse are manufactured as steel-frame modules in the factory while the foundation, the long-lead HVAC equipment and the fire suppression proceed on site, and the modules are then delivered, stacked and connected in a weeks-long installation window. A 15,000–50,000 square foot supplement production facility with a blending suite, encapsulation and tableting rooms, a bottling line and a QC lab can be designed, manufactured and installed in 9–14 months — roughly 30% faster than site-built delivery — following the same factory-built logic we document for modular GMP pharmaceutical manufacturing facilities.
What a Nutraceutical or Supplement Program Builds

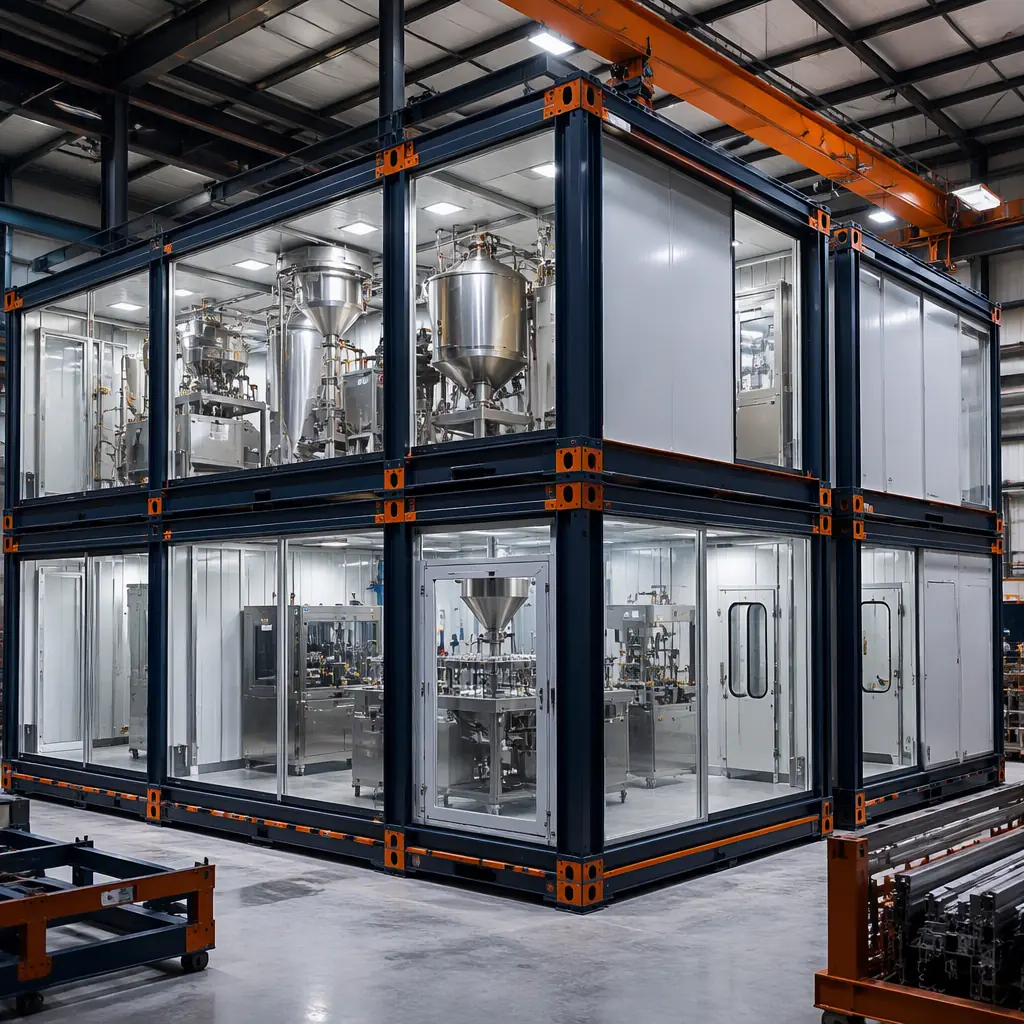

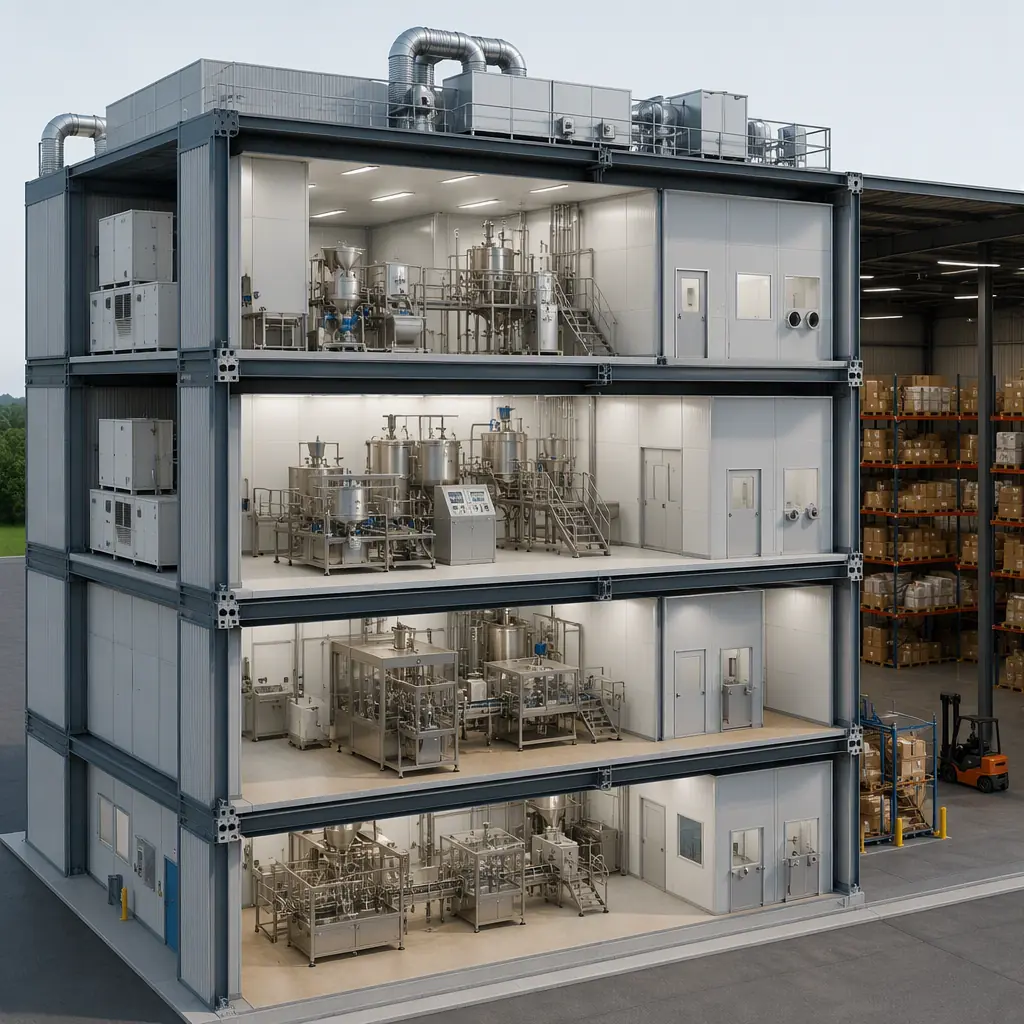

A contract supplement manufacturer combines a powder program and a packaging program. The receiving and dispensing side includes the raw-material receiving dock, the quarantine and hold area, the dispensing and weighing room and the bulk intermediate storage. The production side includes the powder-blending suite with the V-blenders, ribbon blenders and IBC bins, the encapsulation room with the capsule fillers and the tumble dryers, the tableting suite with the rotary presses and the tablet coaters, and the liquid-fill or softgel area where the fish-oil and gelcap lines run. The packaging side has the bottle-filling, capping and induction-sealing line, the blister packaging, the label and carton lines and the finished-goods warehouse. The support side has the QC and microbiology laboratory, the environmental-monitoring room, the compressed-air and purified-water (WFI or purified water) generation, the HVAC mechanical space and the utility corridor. What makes it modular is that each processing room and each support module is a factory-built steel-frame module with the cleanroom walls, the HEPA-filtered HVAC, the stainless piping, the electrical and the data-acquisition pre-installed and aligned to the module-to-module interface — the process-dense discipline we document for modular light-industrial manufacturing facilities and the controlled-environment room approach we document for modular cleanroom facilities.
GMP Compliance & Regulatory Framing
Dietary supplements in the United States fall under the FDA's dietary supplement current Good Manufacturing Practice (cGMP) rule, which sets enforceable requirements for quality control, personnel, building and ground cleanliness, equipment cleaning, production and process controls, and laboratory operations — distinct from the drug GMP rule that governs the pharmaceutical article we cover in modular GMP pharmaceutical manufacturing. Where a pharma plant must validate sterile or high-risk processes, a supplement plant must demonstrate that its rooms, surfaces and airflow do not introduce adulteration, that in-process and finished testing is performed, and that a batch record links every raw-material lot to the finished product. Contract manufacturers increasingly build to a third-party certification standard, such as one of the recognized GMP audits (for example, the NSF or the USP verified-style audit) that a retail brand or an Amazon seller requires before awarding a manufacturing contract. The takeaway is that the celling, the finishes and the airflow are not cosmetic — they are the evidence an auditor inspects. The auditable-build engineering follows the discipline we document for modular factory QA/QC systems and the documentation and traceability workflow we cover in modular construction BIM and digital workflow.
Cleanroom Classifications & Airflow Design
The production suites are classified by the airborne-particulate and microbial limits the finished product demands, and the classification drives the airflow design. A powder-blending, encapsulation or tableting room is typically built to an ISO 8 cleanroom (Class 100,000) or, for a dry-blend and a finished-dosage line handling high-potency actives, an ISO 7 room (Class 10,000) with a layered pressure cascade — the cleanest room at the highest positive pressure, air-cascading outward toward the lower-graded corridors and the non-classified warehouse, so that contamination flows away from, never into, the exposed product. The HVAC system recirculates the filtered air through a HEPA exchange with a proven number of air changes per hour (typically 20–60 in an ISO 7 room), and the rooms are separated from the corridors by air-lock transitions, doors with interlocks, and pressure gauges that log the differential for the batch report. The airflow and segregation design is closely related to what we document for modular HVAC and indoor-air-quality and the positive-pressure/negative-pressure cascade engineering we outline in modular healthcare facility construction.
Humidity, Temperature & Material Control
Supplement powders are hygroscopic and the finished dosage forms (capsules, tablets, softgels) are sensitive to ambient moisture and heat, so the environmental control is the heart of the plant. A blending and encapsulation suite is held to a tight band — often 68–72°F and 30–45% relative humidity — so that the powder flows freely in the blender and the capsule and tablet do not stick in the hopper or soften on the line. The softgel and probiotic suites are held colder and drier, and a dedicated cold room (34–40°F) with a low-dew-point dehumidifier protects the heat- and moisture-labile actives. The room-level HVAC, the building envelope with an integral vapor barrier, and the supplemental dehumidification are all sized to hold that band through seasonal swings, which is the reason the module is built with a tightly-sealed, foil- or poly-backed insulated wall and a dedicated make-up air unit — the integration discipline we document for modular building envelope systems and modular MEP systems integration.
The QC Laboratory & Testing Path
Every contract supplement manufacturer runs a quality-control lab because the release test results are what the brand owner and the retailer require before the product ships. The lab is organized as a separate, negative-pressure or functionally-segregated block with an open analytical area for HPLC, GC, ICP-MS and FTIR instrument benches, a separate weigh room, a micro lab with its own laminar-flow hood, a sample and retain room, and a stability chamber room. The lab is built to mate with the production module so that the receiving, in-process and finished sampling path is short and the environmental conditions (temperature, humidity, vibration) that affect the analytical instruments are controlled. Because the lab is a room-level module, it is engineered and tested off-site and commissioned as a unit — the instrumentation-room discipline we document for modular laboratory and research facilities and the vibration-damping and acoustics control we cover in modular building acoustics and soundproofing.
MEP & Utilities for a Supplement Occupancy
The mechanical, electrical and plumbing systems are sized to the process load and the cleanroom classification. The electrical service for a mid-size supplement plant typically runs 600–2,000 amps to carry the blenders, the capsule fillers, the presses, the coating pans, the packaging line and the HVAC, and the mechanical space holds the rooftop units, the chilled-water plant and the make-up air units sized for the cascade. The purified water (where a softened or reverse-osmosis water is used for compounding and cleaning) and the compressed air are generated in the utility module, with the piping routed to the production suite through the wall or the ceiling. The process-automation, the batch-record and the environmental-monitoring tie into a control room that logs the room pressure, temperature and humidity along with the batch parameters — the data-traceability engineering we document for modular factory quality control and the instrumentation and loop-testing we cover in modular MEP systems integration.
Cost Structure — Modular vs. Site-Built Supplement Facility
| Facility Type | Site-Built | Modular |
|---|---|---|
| 10,000 sq ft, blend + capsule + bottling | $3.6–5.8M / 12–16 months | $3.0–4.9M / 9–12 months |
| 25,000 sq ft, full capsule/tablet + softgel | $8.5–13.5M / 15–19 months | $7.2–11.5M / 11–15 months |
| 50,000 sq ft, multi-line + QC lab + warehouse | $16–25M / 18–24 months | $13.5–21M / 13–18 months |
The 15–20% capital saving matters less than the time-to-revenue reality: a supplement plant is a contract-manufacturing asset where a signed outsourcing contract, a launch window or a seasonal sales peak waits on the build. The modular schedule compresses the build by 3–6 months, which for a contract manufacturer chasing a client'S first production run or a brand hitting a holiday sell-through can be the difference between winning the order and losing the shelf window. For the full cost methodology, see our 2026 modular construction cost guide.
Phasing, Expansion & Delivery

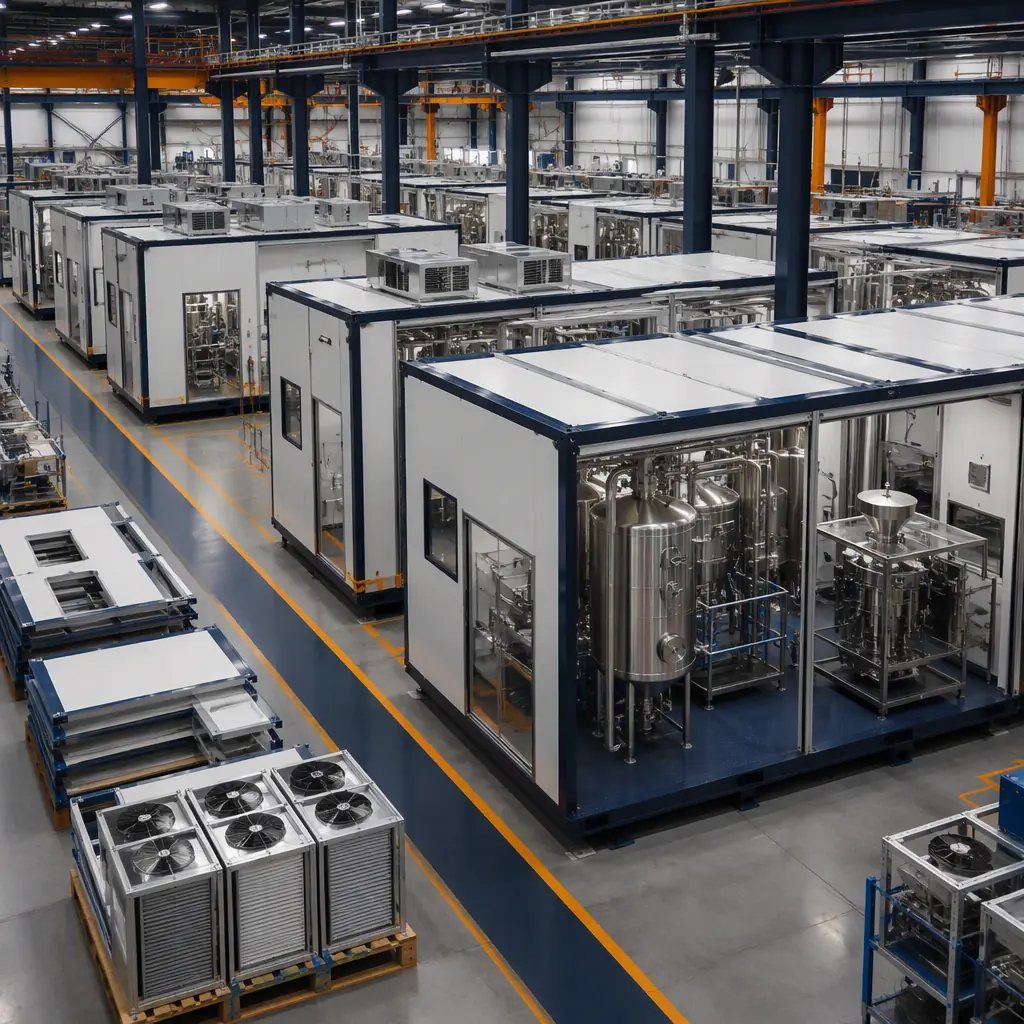

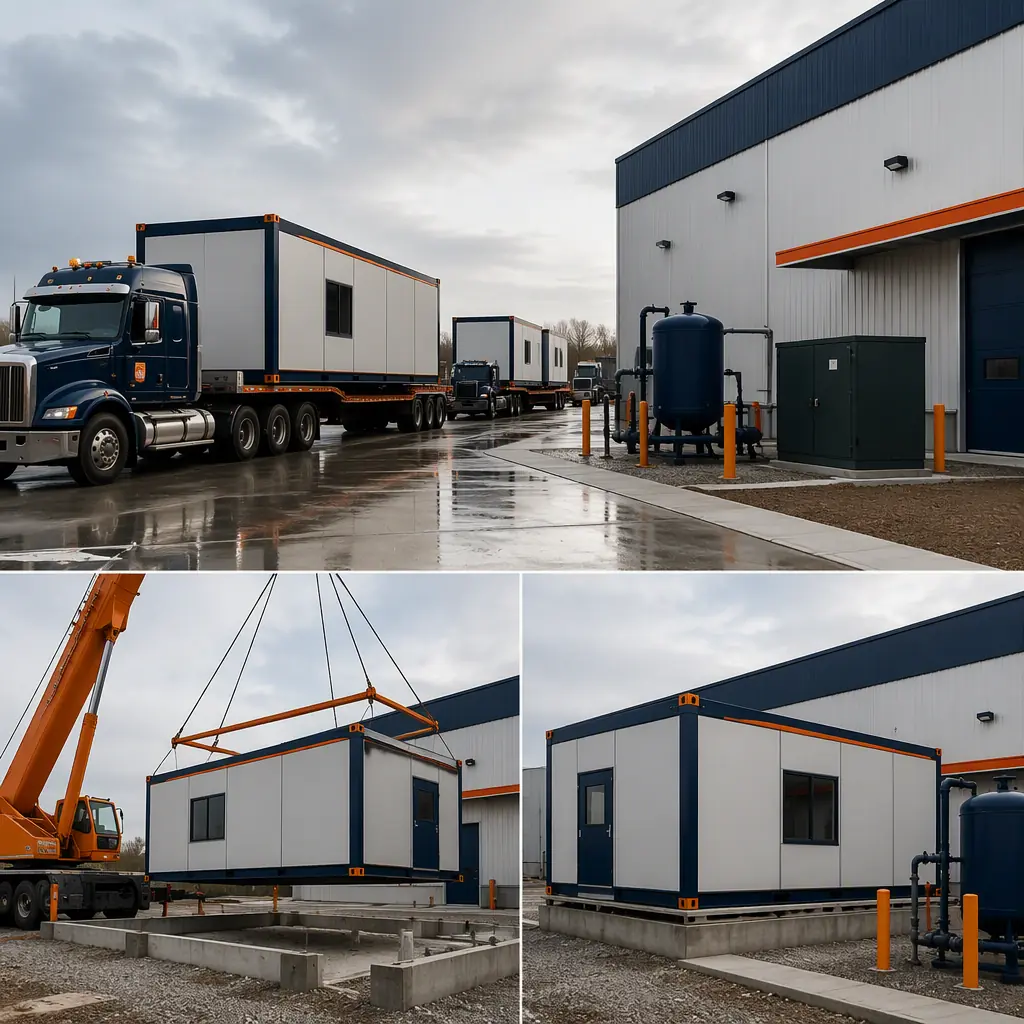

The supplement schedule is driven by the contract pipeline, the product launch date and the seasonal demand. Modular delivery front-loads the cleanroom, the HVAC, the stainless piping and the process-automation engineering into the factory while the foundation, the long-lead HVAC equipment and the fire suppression proceed on site, and the installation sequence is coordinated around the critical handoff: the mechanical and the utility modules are installed and commissioned first, the production suites are lifted in and sealed so the room classification can be certified in stages, and the QC laboratory and the warehouse follow so the plant can start receiving material, blending and packaging while the finishing work is completed — the phased-commissioning pattern we document for modular building additions and expansions. For a contract manufacturer building a second line or a sister plant, modular lets the blending, encapsulation and bottling modules replicate across sites with consistent engineering and a predictable schedule — the repeatable-facility model we document for modular construction scheduling and the rapid-deployment logic we cover in modular construction transportation and logistics.
Is Modular Right for Your Supplement Project?
Modular delivery creates the strongest value for contract manufacturers building under an award deadline, brands requiring a GMP-auditable facility delivered to a launch window, and companies expanding or replicating a production line. The same factory-built model serves a 10,000 square foot blend-and-bottle line, a 25,000 square foot capsule, tablet and softgel plant, and a 50,000 square foot multi-line facility with a QC lab and warehouse — and because the production suites, the cleanrooms and the laboratory arrive factory-built, classified and rated, the day the first bottle ships is a date on the calendar, not the end of a construction project.
Planning a nutraceutical or dietary supplement manufacturing facility? Request our industrial facility documentation package — GMP cleanroom classification, powder-blending encapsulation and tableting layouts, HVAC and humidity control, QC laboratory design, and production-ready installation schedules. Contact the MODURA engineering team.
