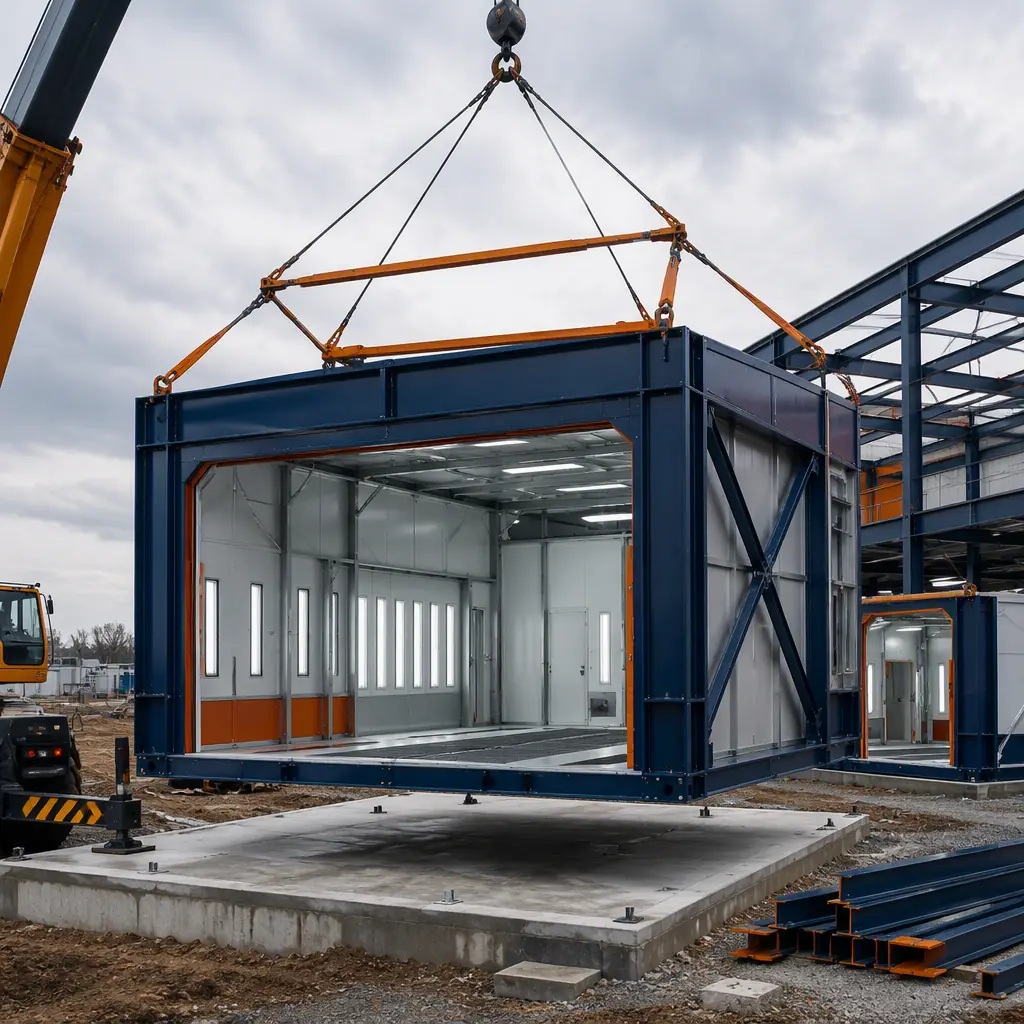

A collision repair shop is one of the most equipment-dense commercial buildings in construction. A typical shop packs a spray booth with explosion-rated ventilation, a frame rack rated for 30,000–50,000 lb of pulling force, four to eight lift bays, a prep and sanding area, a detail bay, parts storage and a customer reception space into 8,000–25,000 sq ft — and every one of those zones carries its own structural, mechanical and fire-safety requirements. Site-built shops pay for that density twice: once in the 8–14 month construction schedule that keeps the building off the revenue ledger, and again in the trades sequencing on site, where the paint booth and frame rack arrive after the shell is up and have to be threaded through finished walls. Modular prefabricated construction reverses the order: the spray booth modules, lift bays, frame rack bays and support spaces are manufactured and pre-wired in the factory while the site is graded and the slab is poured, then delivered in a coordinated installation window. A 15,000 sq ft collision center can be designed, manufactured and installed in 18–24 weeks — with the equipment bays factory-integrated rather than retrofitted. The same industrial building discipline we document for modular car dealerships and auto showrooms and modular transit and bus maintenance depots applies to the collision program. This guide covers the shop program, paint booth integration, frame rack and lift bay engineering, HVAC and solvent safety, workflow zoning, fire and permitting requirements, cost structure, and phasing around opening dates.
What an Auto Body & Collision Shop Program Actually Builds
A collision repair facility is a production line for damaged vehicles, and the building program follows the repair workflow. The core production zones are the intake and estimate area, the disassembly and mechanical bays, the frame and structural repair bay with its rack, the body and panel repair zone, the prep and masking area, the spray booth, the paint mixing room, the reassembly bays and the detail and delivery bay. Around the production floor sit the support spaces: a parts department with secure storage, a customer waiting area and reception, an office suite, employee amenities and a waste and solvent storage room. What makes the program modular is that the equipment-dense bays are manufactured as steel-frame modules in the factory — with the booth shell, the rack anchoring points, the lift pit recesses and the utility runs built in — while the support spaces follow the same prefabricated construction model. The facility layout follows the workflow-zoning discipline we document for modular industrial warehouse construction, where vehicle flow and material flow are planned before the walls go up.
Paint Booth & Spray Booth Integration

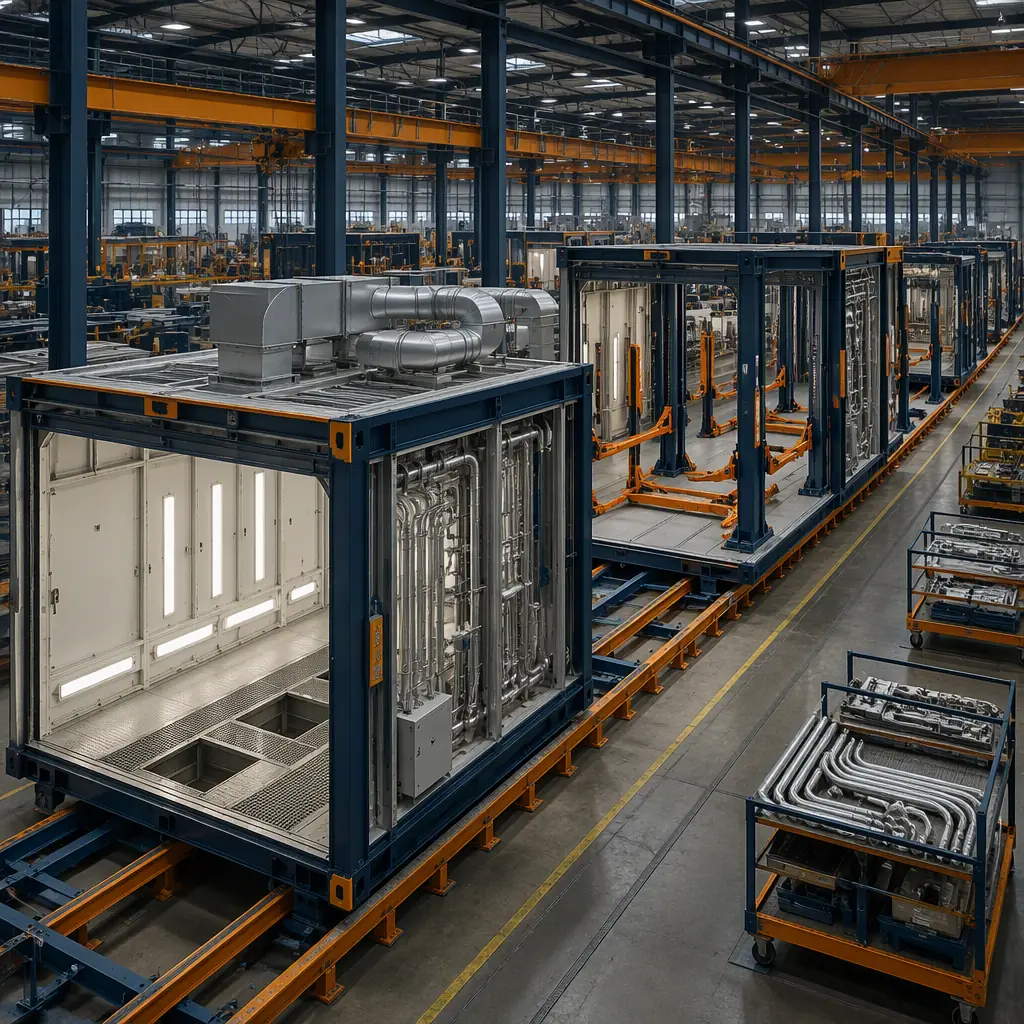

The spray booth is the most safety-critical element in the shop, and it is where modular construction delivers the clearest advantage. A downdraft booth typically measures 12–16 ft wide by 24–30 ft long, with intake filters in the ceiling, exhaust filters and plenum in the floor, and an airflow of 80–100 ft per minute across the work zone. In a site-built shop the booth is a proprietary package delivered and assembled inside the finished shell — a separate procurement and installation sequence. In the modular program the booth arrives as an integrated module: the steel booth shell, the filter housings, the explosion-proof lighting and the exhaust ducting are built into the module in the factory, and the module is placed directly against the shop floor with the utility connections made at the module boundary. The booth's fire and ventilation engineering follows the spray-application standards we document for modular fire safety construction, with the explosion-rated electrical equipment and the interlocked ventilation designed to the same code basis a site-built booth must meet — but verified in the factory rather than commissioned in the field.
Frame Racks, Lift Bays & Structural Loads
Collision repair imposes structural loads that ordinary commercial buildings never see. The frame rack anchors a vehicle with 30,000–50,000 lb of pulling force, and the rack's anchoring points must be tied into the slab and structure at engineered locations. The lift bays need slab reinforcement and, for in-ground lifts, recessed pits with drainage. The modular building handles these loads at the design stage: the rack bay module is fabricated with the anchor points and slab details specified, the lift bay modules are built with the pit recesses and utility chases in place, and the structural frame is engineered for the concentrated loads of rack pulls and lift posts. The structural engineering follows the load and durability standards we document for modular factory quality control systems, where dimensional accuracy and anchor-point verification happen before shipment. Because the bays are manufactured as modules, the shop can also be reconfigured as the business grows — adding a second booth or a mechanical bay follows the expansion model we document for modular building additions and expansions.
Shop HVAC, Air Filtration & Solvent Safety
The mechanical design of a collision shop is dictated by the airborne hazards: solvent vapors from paint, dust from sanding and prep, and the fumes from welding and structural repair. The spray booth runs its own dedicated downdraft ventilation system, but the surrounding zones need engineered air movement too. The prep and sanding area is ventilated with dust collection and MERV 13–16 filtration to keep abrasive dust out of the booth supply air. The paint mixing room is ventilated with an explosion-rated system sized to the solvent load, and the booth area is maintained at a slight negative pressure so contaminated air does not migrate into the customer and office zones. The mechanical engineering follows the indoor air quality discipline we document for modular HVAC and indoor air quality, with the ducting, filtration and pressurization zones factory-installed in the modules. For shops that repair EVs and hybrids, the design also includes the high-voltage disconnect and battery storage protocols that are becoming a standard part of the collision program.
Workflow Zoning & Drive-Through Layout

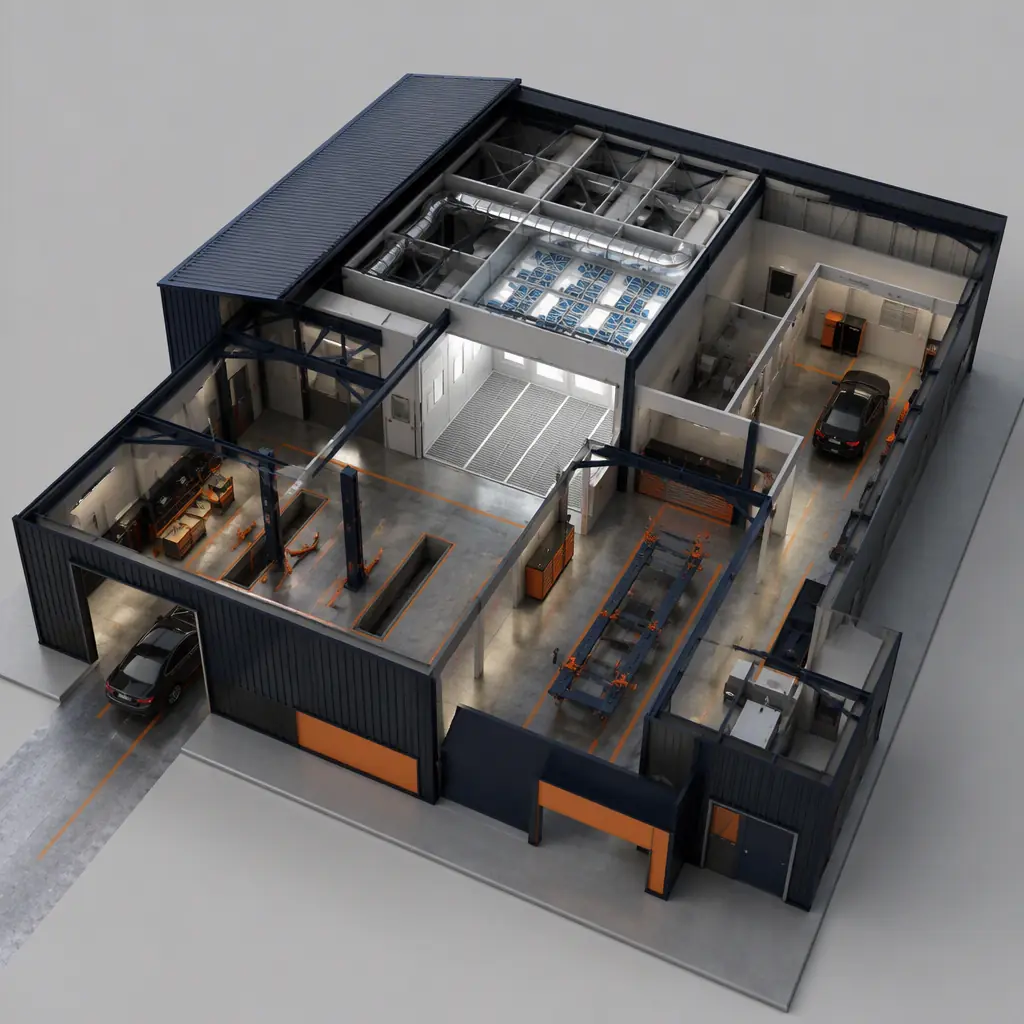

A profitable collision shop moves vehicles through the facility in one direction: intake to estimate to repair to paint to detail to delivery. The modular program supports that flow with a drive-through layout, where the building is arranged as parallel bays with the vehicle path running from the front intake doors to the rear delivery doors — no backing up, no cross-traffic between production and customer zones. The customer experience zone — reception, waiting area, estimate offices and vehicle delivery — is separated from the production floor by a rated partition, following the customer-flow design we document for modular retail construction. The parts department is located at the workflow midpoint with secure storage and a counter, and the waste and solvent room is placed at the exterior wall with direct access for hazmat pickup. The zoning plan follows the same program-sequencing discipline we document for modular construction scheduling, where the workflow is mapped before the building is designed.
Fire Safety, Permitting & Insurance Requirements
A collision shop concentrates fire risk in the spray booth, the paint mixing room and the solvent storage area, and the building's fire protection is designed around those three zones. The booth and mixing room are protected with fire-rated construction and explosion-vented wall panels, the solvent room is a rated enclosure with spill containment and dedicated exhaust, and the shop floor is protected with a fire sprinkler system designed for the occupancy. The permitting pathway adds environmental requirements that a typical commercial build does not face: air emissions permitting for the booth exhaust, hazardous waste registration for the solvent and paint waste streams, and local fire department review of the spray application area. The permitting and zoning discipline is the same framework we document in modular construction permitting and zoning, and the fire-rated assemblies follow the standards in modular fire safety construction. Insurers and OEM certification programs — the manufacturer certifications that allow a shop to perform warranty repairs — audit the booth, the ventilation and the technician training, and the factory-verified modular booth documentation shortens that audit cycle.
Cost Structure — Modular vs. Site-Built Shops
| Facility Type | Site-Built | Modular |
|---|---|---|
| Single-bay shop (8,000 sq ft) | $1.2–1.9M / 8–12 months | $1.0–1.6M / 14–18 weeks |
| Two-to-three bay center (15,000 sq ft) | $2.2–3.4M / 10–16 months | $1.9–2.9M / 18–24 weeks |
| Full-service collision center (25,000 sq ft) | $3.8–5.6M / 14–22 months | $3.2–4.8M / 24–32 weeks |
The 15–20% capital saving matters less than the operating math: a shop that opens six months earlier starts converting repair orders into revenue sooner, and the factory-integrated booth and rack eliminate the retrofit labor that inflates site-built budgets. For the full cost methodology, see our 2026 modular construction cost guide.
Phasing & Delivery Around Opening Dates

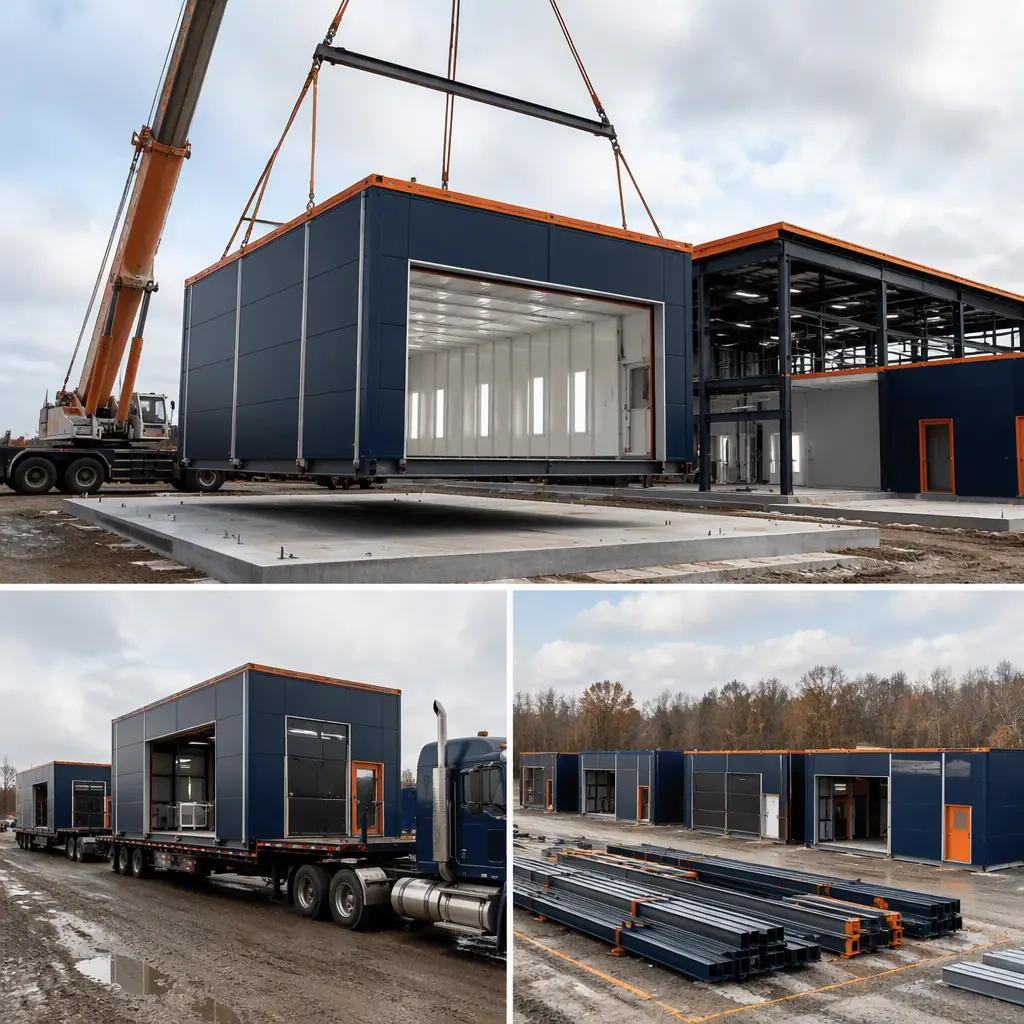

The collision shop schedule is driven by two calendars: the insurance and fleet contracts that a new location needs to win, and the lease or ownership timeline of the building. Modular delivery aligns with both because the factory schedule is fixed and weather-independent — the booth modules and bays are manufactured through the winter while the site work, slab and utilities are completed, and the installation window is compressed to a coordinated crane-and-connect sequence. The critical-path discipline for hitting the opening date — factory slots, bay sequencing, and the slab and utilities completed before modules arrive — is the scheduling methodology we document in modular construction scheduling. For multi-location operators, the same shop design can be replicated across markets efficiently, following the repeatable-program model we document for modular energy and industrial infrastructure, and for franchises standardizing their facilities, the factory-built model locks the booth layout, brand colors and workflow into every location.
Is Modular Right for Your Collision Shop?
Modular delivery creates the strongest value for collision operators who need a shop open before a contract or lease deadline, dealership groups adding a body shop adjacent to an existing modular dealership facility, fleet and insurance programs rolling out standardized repair locations, and owners replacing an outdated shop without a year-long closure. The same factory-built model serves independent collision shops, franchise operators, dealership collision centers and fleet maintenance operators. If you are funding a new shop on a schedule measured in months rather than years, the modular building is the most reliable path — and because the booth, rack and bays arrive factory-integrated and ready for commissioning, the opening day is the start of the repair pipeline, not the end of a construction project.
